Name |

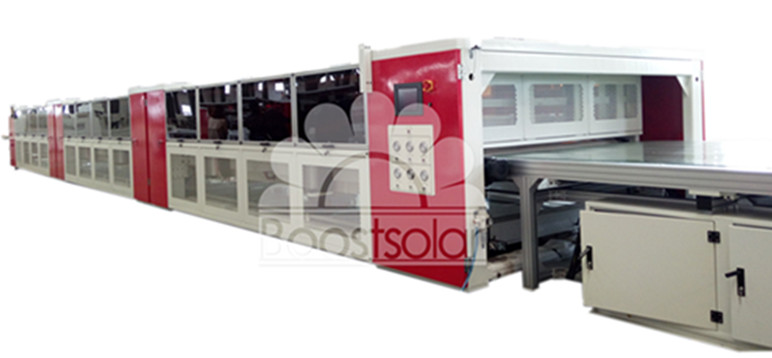

Automatic Solar Module Laminator |
|||
|
Type |
BSL2236OAC-HS |
|||
|
Parameters |
Power Supply |
AC380V 3phase 5line |
Weight |
35.5T |
|
Compressed Air Flow |
¡Ý750L/min |
Control Platform |
Touch Screen |
|
|
Total Power |
175KW |
Operating Power |
80KW |
|
Laminator Model
1. Effective Laminating Size£º2200 mm ¡Á 3600mm
2. Overall Dimension£ºLength 21900mm¡Á Width 3665mm¡Á Height 2200mm
3. Heating Method£ºHeating oil
4. Compressed Air Pressure£º0.6¡«0.8MPa
5. Vacuum Degree£º100¡«40Pa
6. Vacuum Speed£º70L/S
7. Temp Control Accuracy£º¡À1.5¡æ
8. Temperature Control Range£ºroom temp to 180¡æ
9. Temperature Uniformity£ºwithin effective laminating size¡Ü¡À2¡æ
10. Laminating Chamber Height£º30mm
11. Vacuum Time£ºDepends on laminating technology, suggest 5¡«8min
12. Cover Travel Distance£º300mm
